Zipbolt KD 'Knock Down' Furniture Connectors

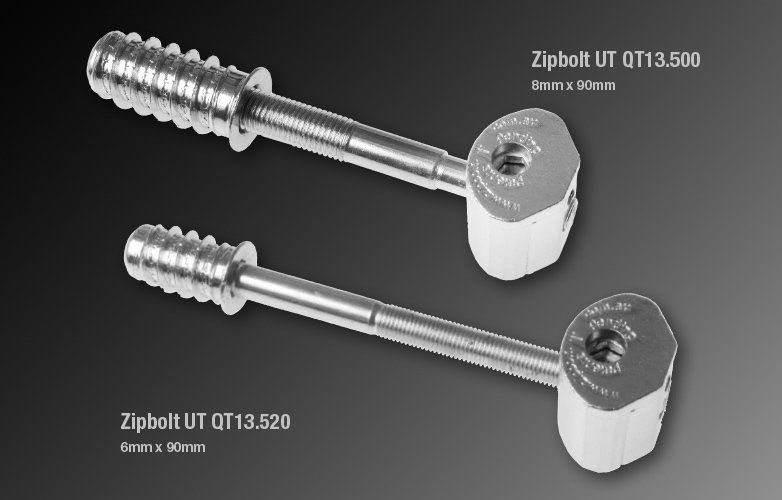

PRODUCT CODES: QT13.500 & QT13.520

The NEW die cast “Open Channel” housing is a major development by Zipbolt which allows the housing to be placed over the shaft easily engaging the thread and positioning the

housing at the right height even if the hole was bored too deep.

A reduced housing size also permits the housing to travel within the accommodating (25mm) hole tightening the joint while the two wood members are already connected. In conjunction with dowels and liquid adhesives, the KD ZIPBOLT allows legs and rails or furniture components to be assembled at once, rather than assembled in parts over several days whilst the adhesive bonds, greatly increasing production efficiency.

These connectors can also be used as a stair connector for handrails.

• Size 6mm x 90mm & 8mm x 90mm
• Housing size: 25mmø x 20mm
• Insert size: 21mm x 10mm & 31mm x 12mm
• Ideal for table or bed assembly
• 5mm driver bit for tensioning
• 6mm hex driver bit for insert
• Zinc
