QT10.820 Worktop Connectors

Zipbolt Slimline   Line- Bore

Worktop Connector for 16-25mm Worktops

PRODUCT CODE: QT10.820

SIZE: 90mm(L)  X 12.5mm(H) X 25mm (Dia)

DRIVE: 4mm HEX

METHOD OF TENSIONING: CORDLESS DRILL OR HAND RATCHET

WORKTOP THICKNESS: 16mm -25mm

APPLICATION: 8mm ROUTER CUTTER AND STD ROUTER JIG

"THE ZIPBOLT WORKTOP CONNECTOR IS THE NUMBER ONE TRADEMANS CHOICE"

The ZIPBOLT QT10.820 MINI Line Bore Connector is a 3 piece connector for example, the 'U' nut, shaft and gear housing are all separate components.

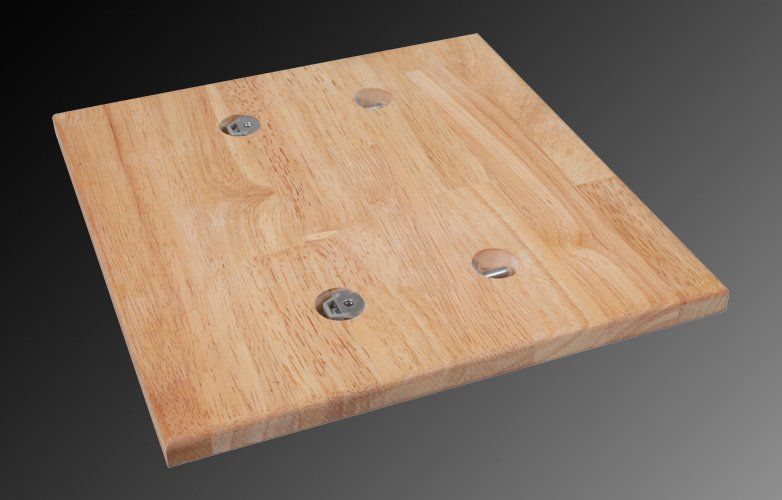

This allows you to connect your panel/worktop by feeding the shaft down the bored holes on the edges of the panel, only revealing the gear housing holes as illustrated left.

Zipbolt Worktop Connectors have a unique gear patented design which allows you to join the worktops with a cordless drill which is over four times faster than conventional bolts to fit.

The ZIPBOLT connector has unique geared mechanism  that saves time and money in assembling worktops and panels.

Downloads & Datasheets

DOWNLOAD ZIPBOLT DATASHEET - QT10.820

164mm (181kb PDF)
