True Position Jigs

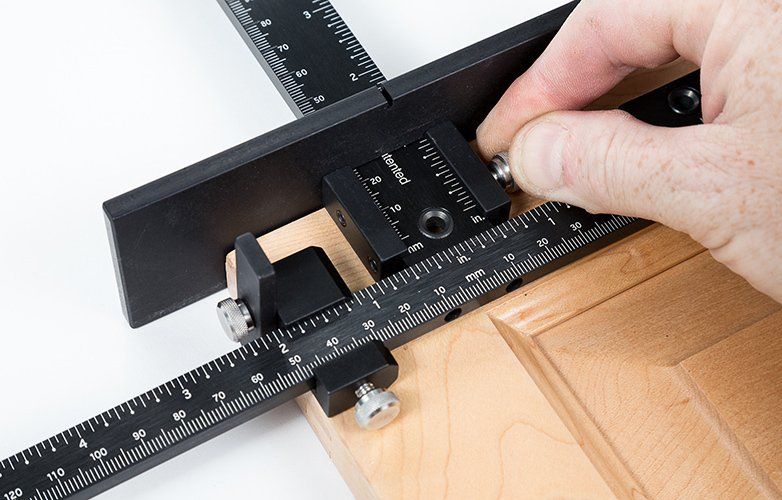

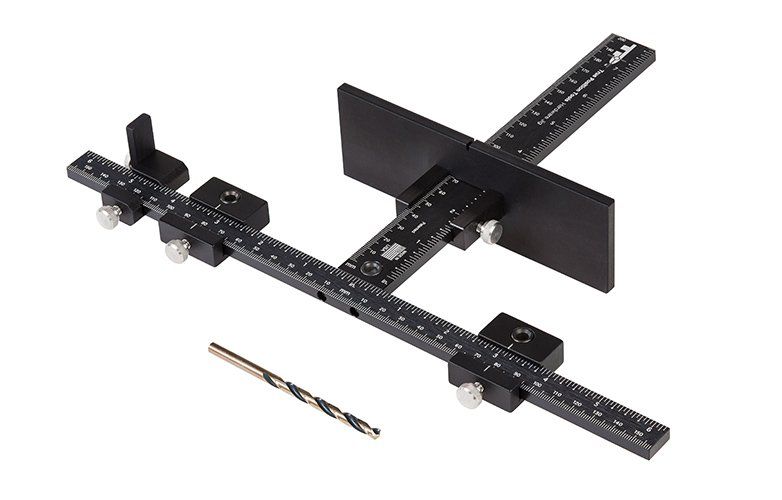

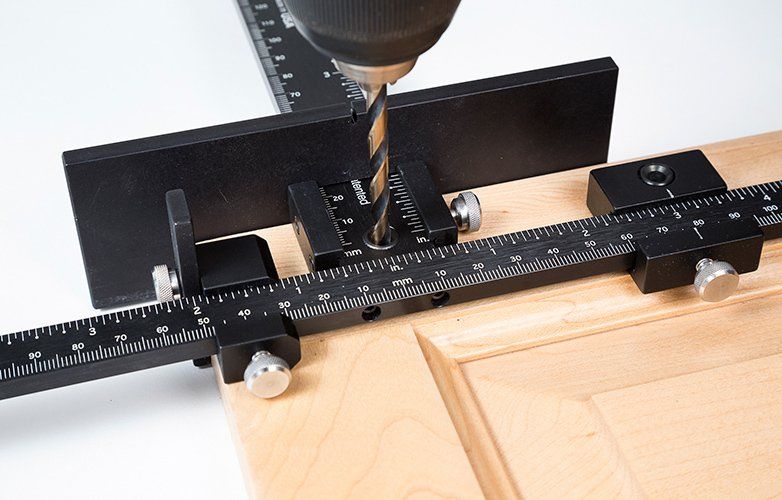

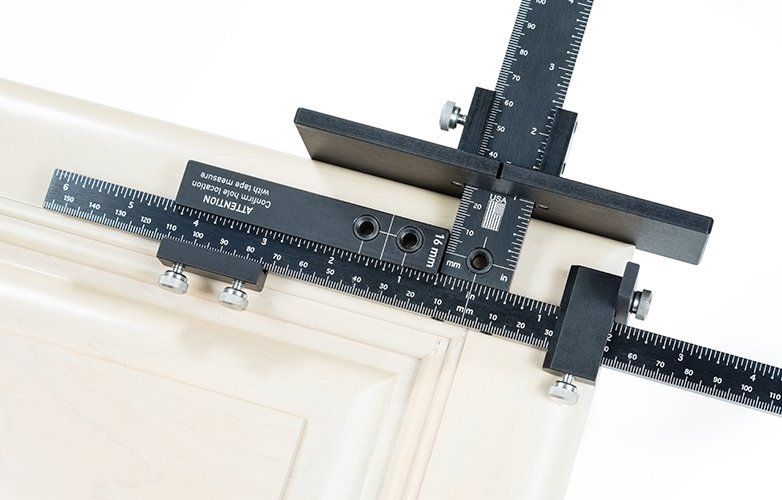

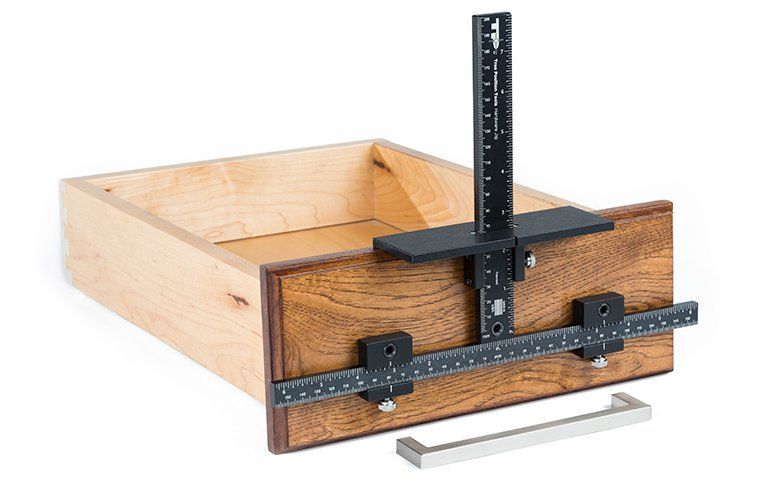

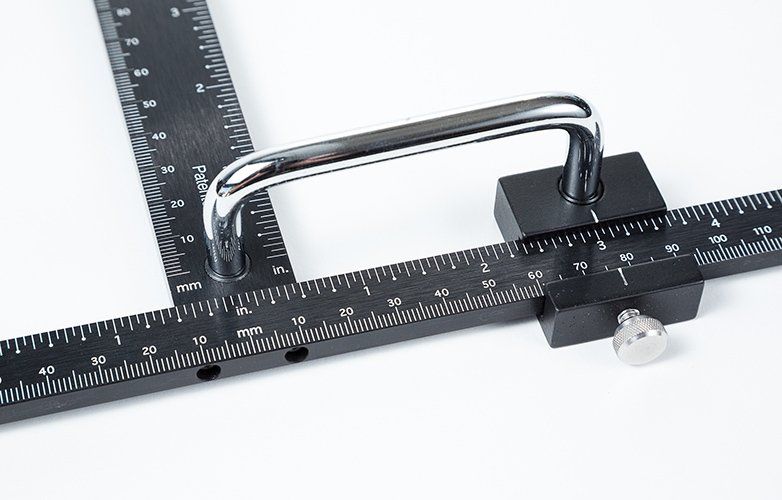

True Position Cabinet Hardware Jig Original


PRODUCT CODE: TP-1934-ORIGINAL

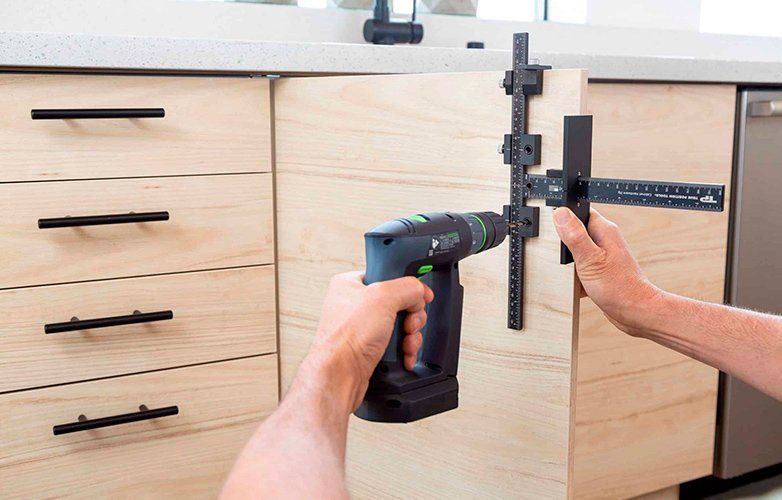

For professional installation of handles & knobs. Works on doors and drawer fronts.

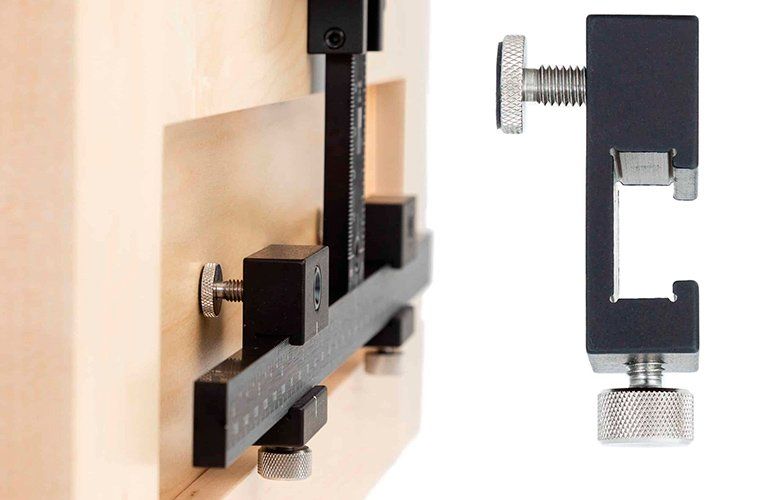

An invaluable tool for any cabinet installer. Simply slide guides and stop along imperial & metric rulers, tighten thumb screws & drill.

TP-1934 is the core unit of the complete drilling system (TP-1935). Locates hardware holes of any dimension on doors & drawer fronts.



Includes standard 5MM drill bit (approx. 3/16”). Durable light-weight aluminium with case hardened steel bushings.


  • Install hardware up to C-C (300mm)
  • Durable aircraft quality aluminium
  • 5mm case hardened steel bushings are replaceable
  • Made in USA

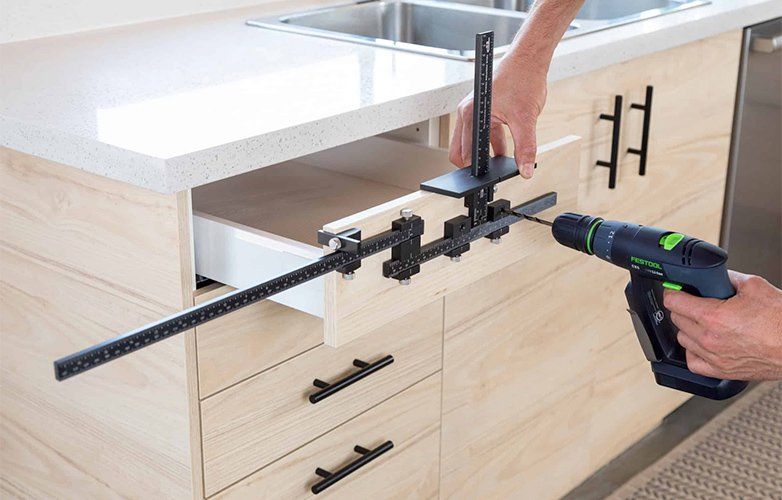

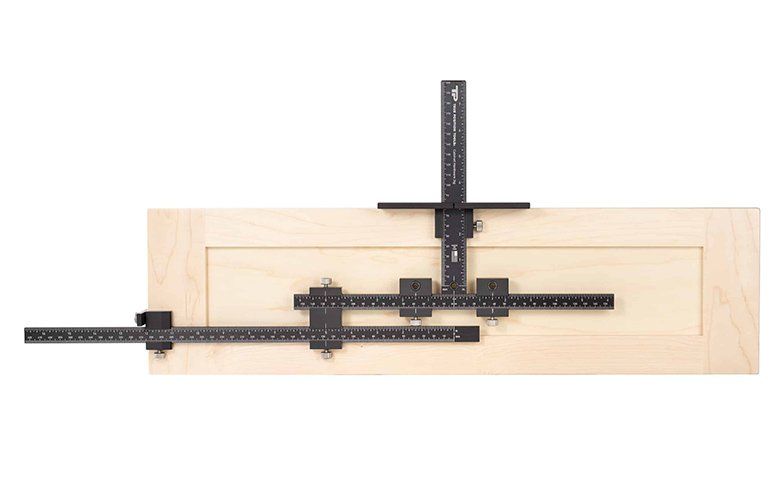

True Position Cabinet Hardware Jig Pro


PRODUCT CODE: TP-1935-PRO


The Cabinet Hardware Jig that doesn’t require marking or clamping. Created from a superior, hardened anodized aluminum that comes equipped with laser engraved rulers and case hardened bushings


10x more precise than imitations, with proven results you can count on. Patent-pending True Calibration™ system with Perfect Match™ laser engraved rulers. The most accurate cabinet hardware jig on the market.


SPECIFICATIONS


  • Max Handle Width:
    300mm Center-to-Center


  • Max Centering
    (on drawer front width/door height):
    1066mm with end stop, Infinite with center mark

  • Max Drawer Front Centering Height:
    406mm



  • Max Shelf Pin Hole Pattern:
    3 holes



  • Min. Width Door Panel
    (stile/rail):  1/2"


  • Min. Placement From Edge
    (of door/drawer front):  1/4"



  • Tool Dimensions:
    241 x 318 x 51mm


  • Bushings:
    5mm x 1/2" length



  • Material:
    Hardened anodized aluminum, Case-hardened steel bushings, Stainless steel thumb screws

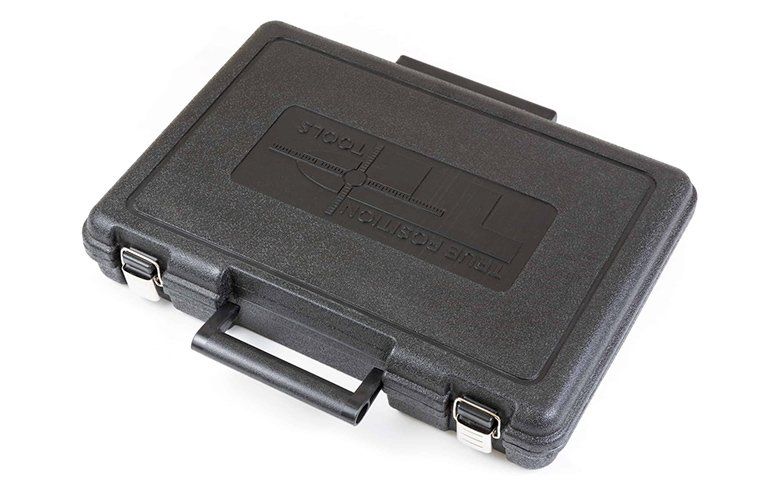

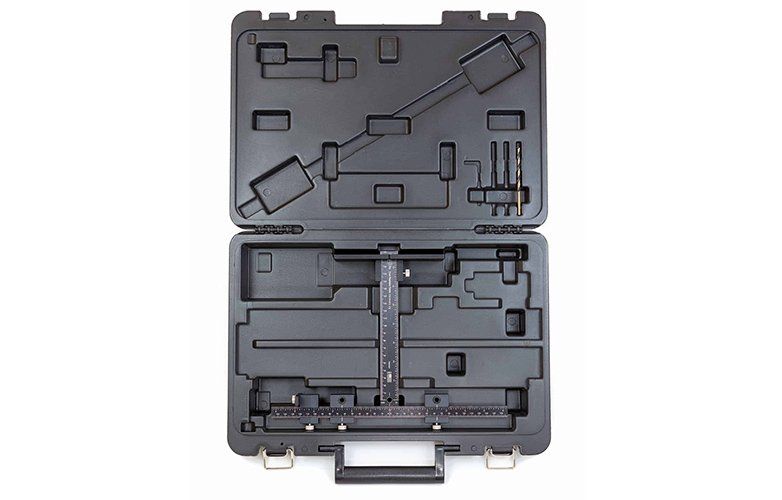

  • Carrying Case:
    Hardened plastic, Stainless steel latches



Weight: 2.72kg with caseNew ParagraphNew Paragraph

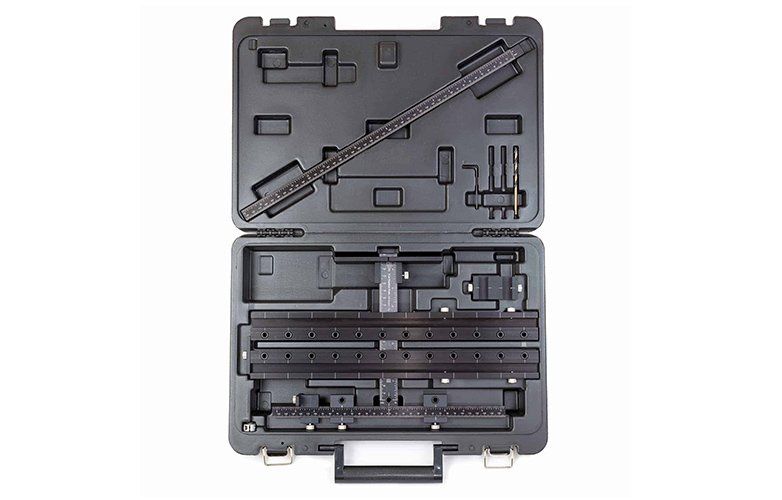

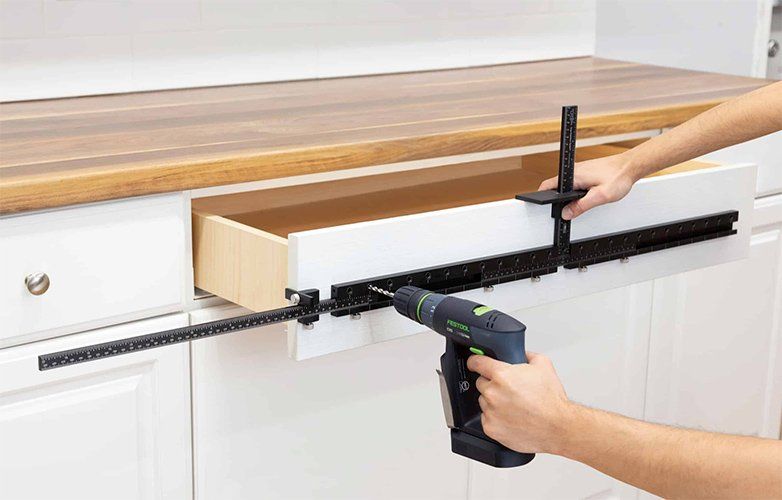

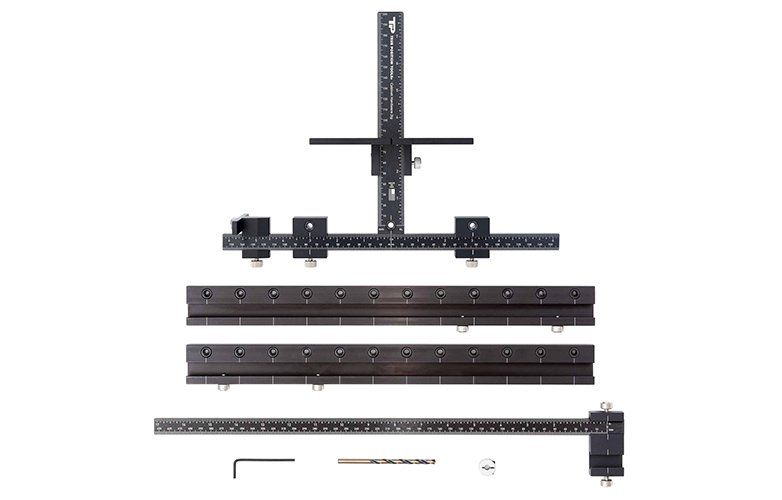

True Position Cabinet Hardware Jig Max


PRODUCT CODE: TP-1950-MAX


The Cabinet Hardware Jig that doesn’t require marking or clamping. Created from a superior, hardened anodized aluminum that comes equipped with laser engraved rulers and case hardened bushings


10x more precise than imitations, with proven results you can count on. Patent-pending True Calibration™ system with Perfect Match™ laser engraved rulers. The most accurate cabinet hardware jig on the market.


SPECIFICATIONS


  • Max Handle Width:
    300mm Center-to-Center


  • Max Centering
    (on drawer front width/door height):
    1066mm with end stop, Infinite with center mark

  • Max Drawer Front Centering Height:
    406mm



  • Max Shelf Pin Hole Pattern:
    3 holes



  • Min. Width Door Panel
    (stile/rail):  1/2"


  • Min. Placement From Edge
    (of door/drawer front):  1/4"



  • Tool Dimensions:
    241 x 318 x 51mm


  • Bushings:
    5mm x 1/2" length



  • Material:
    Hardened anodized aluminum, Case-hardened steel bushings, Stainless steel thumb screws



  • Carrying Case:
    Hardened plastic, Stainless steel latches



Weight: 2.72kg with caseNew ParagraphNew Paragraph

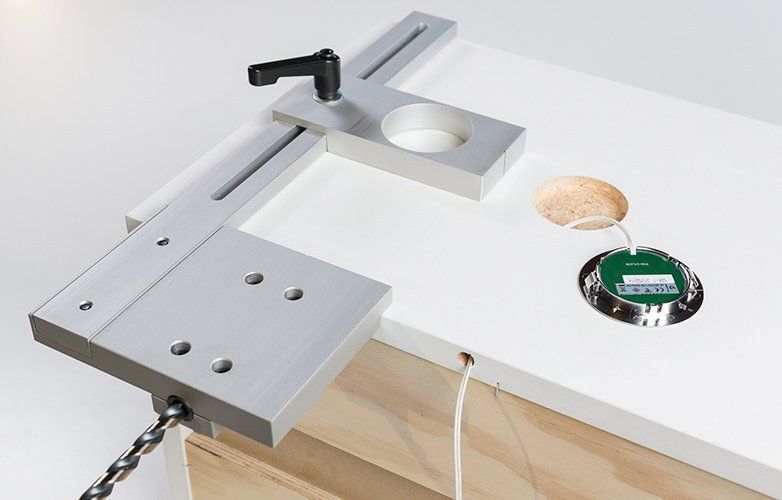

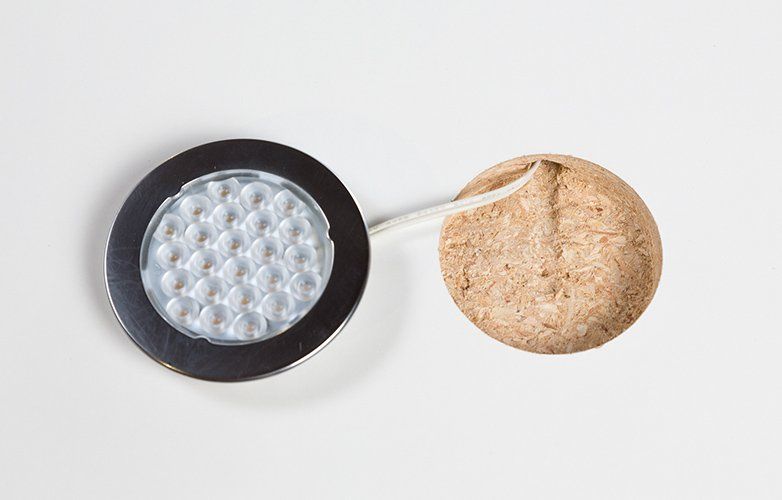

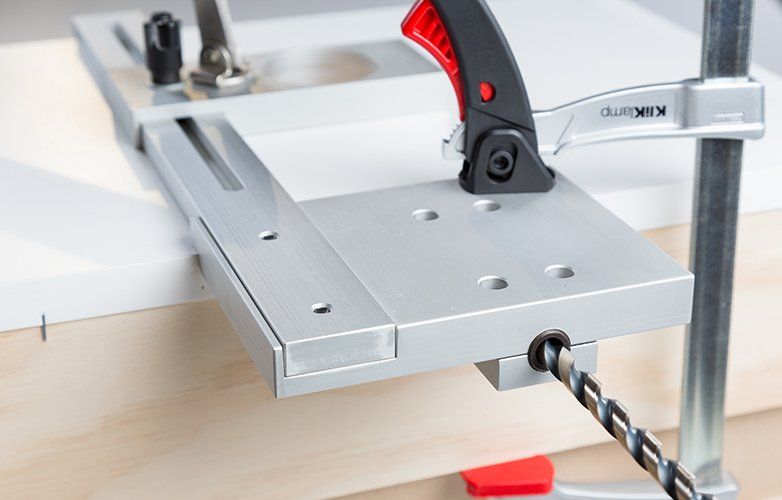

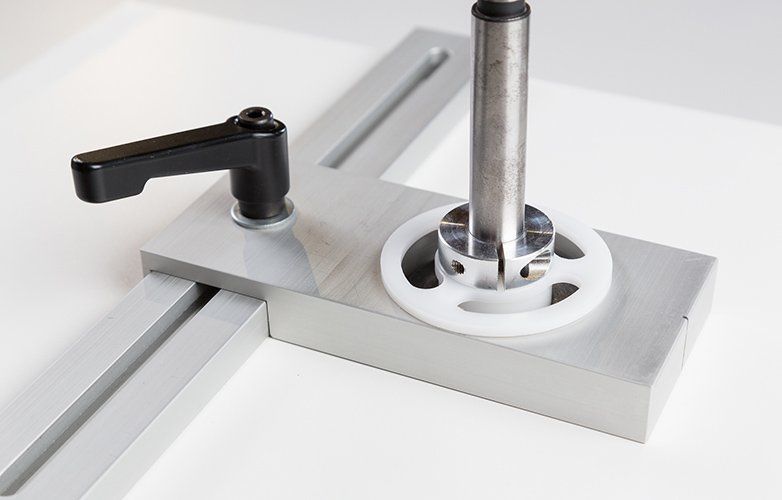

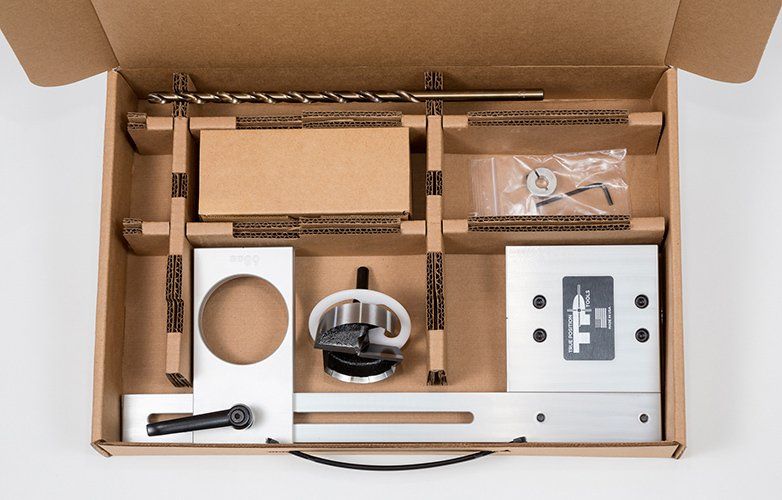

True Position Puck Light Jig


PRODUCT CODE: QTK150


Revolutionary design eliminates
false bottom / cabinet build-ups


LED Puck Light Installation Jig – Includes 12” x 3/8” drill bit, 2 1/8 and 2 1/4 Forstner bits with depth stops. Install wire and puck lights in 5/8” or 3/4” panels without using a false bottom. Also can be used for drilling wire holes to strip lights and switches. Requires 1/2” hand drill for operation.


  • Routes wire within cabinet panel
  • 3 Drill bits included
  • For puck lights and strip lights
  • Made in USA
