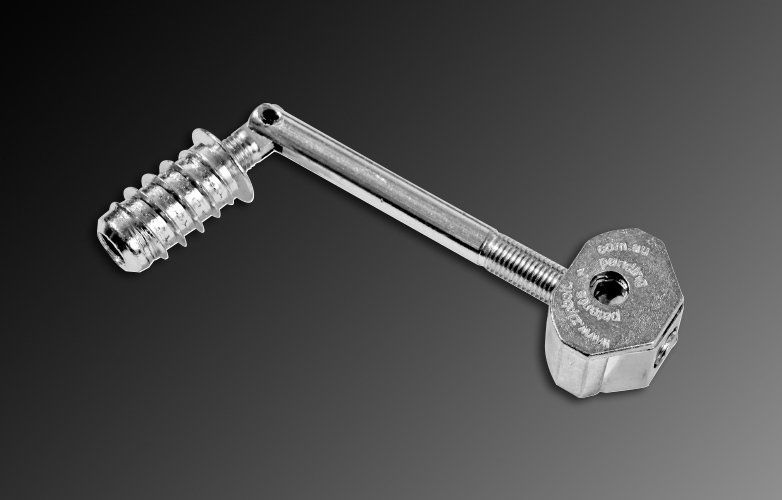

Zipbolt Furniture Mitre Connector

PRODUCT CODE: QT11.720

Zipbolt UT - Mitre connectors are the ideal solution for angle joints and are suitable for a variety of application from furniture construction to staircase designs.

The UT Mitre is truly flexible by allowing any angle between 80 and 180 degrees but with distinct advantages that allow the shaft to pass through the back of the housing providing travel and permitting the joint to be re-cut if necessary.

The UT Mitre features two diecast housings and allows the user adjustment to create a perfect joint; each housing has an Open Channel for simply placing over the shaft for easy thread engagement and positioning at the correct height.

• Size 6 x 85mm
• Housing size 25mmø x 12.5mm
• For mitre joints between 80-180°
• 4mm drive bit for tensioning
• Zinc - for corrosion resistance

DOWNLOAD ZIPBOLT DATASHEET - QT11.720

(193kb PDF)
